BANDWIDTH ADJUSTMENT
SIMPLE - ROBUST - VARIABLE -
LOW MAINTENANCE – HIGHLY EFFICIENT
AWARDED THE SILVER MEDAL – AGRITECHNICA 2019 and Agrarfuchs 2020
The solution
The solution for herbicide-free work or savings of up to -50% of herbicide costs possible.
There are so many advantages to hoeing the plant with centimeter precision:
- Chopping down to the centimeter is possible
- Adaptation to different development stages of the plant
- The hack bandwidth can be changed at any time
- Combination with camera system possible
- Adapt quickly to weather conditions
- Reduce weed pressure directly on the plant
- Reduce the time for manual chopping -> reduce labor costs
- Suitable for organic & conventional farms
Would you like to receive an individual offer?
Our services at a glance
The solution
- World novelty of the “belt width adjustment” - electrohydraulically (from the cab) or mechanically
- Easy, very quick option to hoe directly on the plant
- Significant reduction in herbicide cost
- Anti-erosion, soil aeration, increase biological activity
- High quality combined with optimal weight
- High area coverage thanks to working speeds of up to 19 km / h
- Cutting shares made of Hardox or carbide
- Revolutionary tine suspension with double springs
- Very good view of the hoe
- Designed for combination with camera system
- Additional tools can be easily set up – finger hoe, curry comb, ...
- low-wear, stable design of all elements

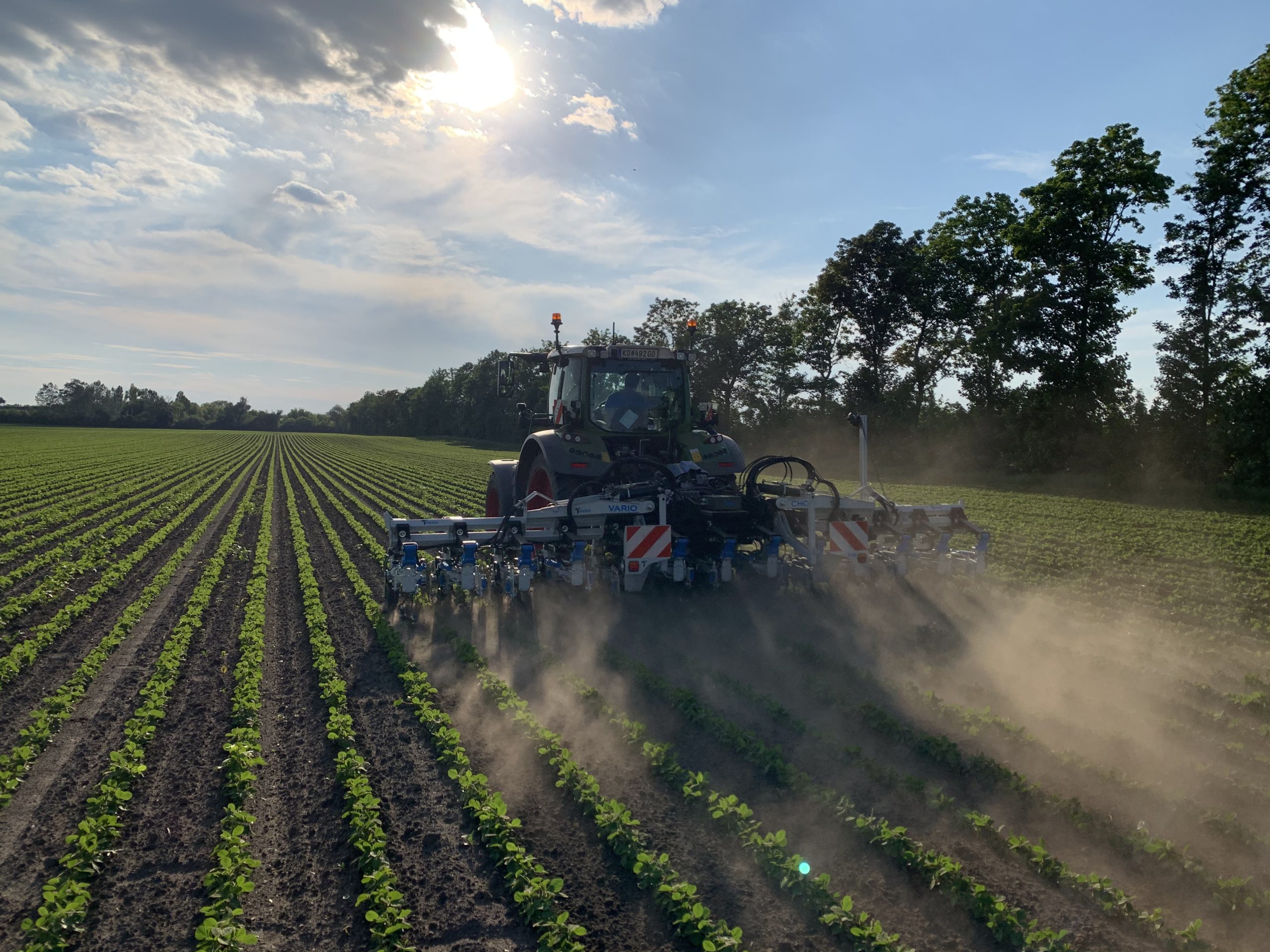

VarioChop im einsatz
Use the greatest innovation in chopping technology!

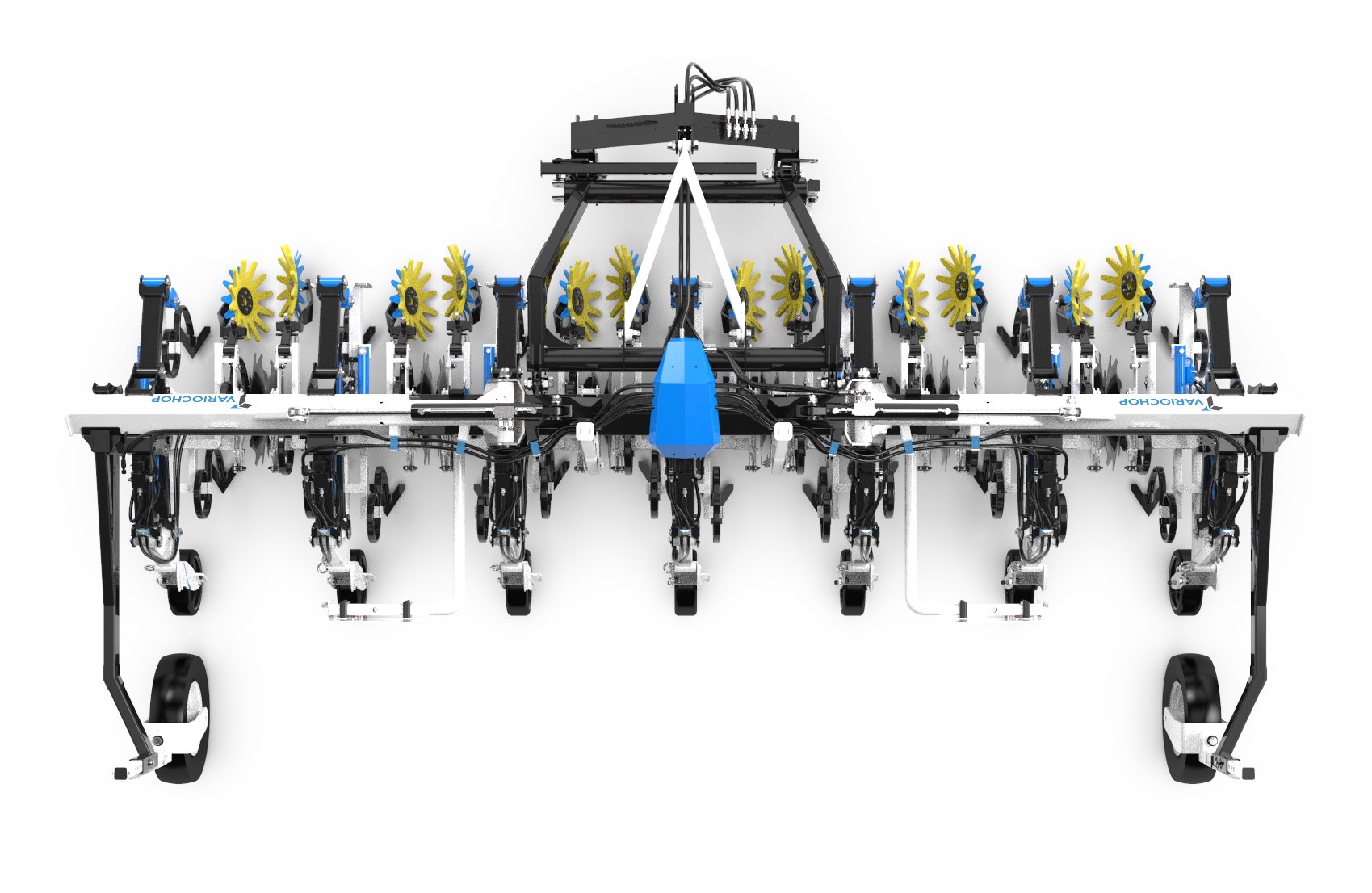

Variable bandwidth
Always perfectly adjusted tape!
- Set bandwidth from the cabin!
- 2x plant protection element, 2x finger hoe, 3x to 5x shares
- Sophisticated kinematics
Heavy Duty
Put an end to worn-out chopping technology!
- Perfect move in
- Fanned out array
- Heavy-duty mechatronics
User-friendly
From users for users
- Unobstructed view of the row of plants
- User-friendly design
- Plant protection elements can be limited in height
Use in extreme conditions
Also works with a lot of weeds, on hard soil and hilly areas
- Best penetration for hard ground conditions
- Unobstructed view of the row of plants
- Bandwidth adjustment from the cabin
adaptable
Adaptable to new cultures or weather conditions
- Perfect move in
- Fanned out array
- Heavy-duty mechatronics
Port
Simple operation of the electrical belt width adjustment.
- Thanks to the stability, precision and the clear view always exactly where it is needed.
Would you like to receive a non-binding offer?
For many years successful in the fields of Europe on road
FRANCE
GERMANY
AUSTRIA
ITALIAN
CZECH REPUBLIC
farmers out Lower Austria watch out
Within the framework of the investment promotion of Lower Austria, there is currently the possibility
20% promotion on hoeing technology to apply.
VarioChop put to the test
additional tools
(10 different available)
Headstock FX
This headstock can be used both in the front and in the rear attachment. In the front attachment, great attention was paid to ensuring that you have a good view of the row.
Steering bracket RG-X Rear Guidance
The RG-X was developed as a shunting block for camera and steering systems. The parallel movement is carried out by 2 hydraulic cylinders, which gently move the hoeing device with a rotary movement. What makes the RG-X special is an additional displacement in the row via steering cylinders, the cultivator can also be adjusted at an angle to the row. This offers better results when driving across slopes. Optionally with 3-point adapter to attach different cultivators (also from other manufacturers).
Front hitch SX
The SX front linkage was designed for front attachments. The center of gravity is approximately 32 cm closer to the tractor than the FX headstock. However, this can only be used in front.
jockey wheel
The feeler wheel can be easily adjusted between 5 and 50 mm working depth without tools using a spring-loaded bolt. A long-range jockey wheel is also available on request, which increases the adjustment options by 4 cm.
knife roller Optional
Especially with a lot of mulch material, blockages can occur again and again. The mulch material in front of the coulters can be additionally chopped up by the knife roller. The knife roller has a self-cleaning effect and is divided into 2 halves that open towards the back so that no stones can get stuck.
crop protection disc
The crop protection disc serves to protect the crop from spills. This is preloaded with a spring and can be easily adjusted in height without tools.
finger pick Optional
The finger hoe has become indispensable in most hoeing devices and enables weed control in the row. In order to prevent drift problems on slopes, the finger hoe is mounted as close as possible to the share. Height, contact pressure and also the distance to the row can be easily adjusted.
ridging disc Optional
Like the finger hoe, the ridging disc can be quickly mounted on the side multi-tool carrier without any tools. The adjustment options for height, inclination, power, width and cutting angle are identical to those of the finger hoe.
precision cut disc Optional
Especially with small and sensitive crops, it is often desired that the disc in front of the coulters works the soil 'away' from the plant. This is possible with the exact cutting disc, which can be adjusted in height and aggressiveness without tools. Another option is to swap the two discs in each row. This can achieve a heaping effect.
blade guard Optional
The leaf protection plate is mounted when the crop could be injured by the plant protection plate in larger stages of development. The sheet cleanly guides the leaves of the cultivated plant past the pane
Testimonials
HANNES T., 50, FARMER FROM LOWER AUSTRIA
The tedious adjustment of my old hoeing device was very time-consuming and tedious - finally I can hoe directly on the plant within a very short time. A great relief with approx. 40 ha of root crops.
JOHANNES H., 34, FARMER FROM GERMANY
After several hours with the hacking device, it was already clear to me: The device is built so robustly that it will last until I retire.
STEFAN R., 32, FARMER FROM UPPER AUSTRIA
Whether pumpkin, corn or sugar beet. I drive everywhere with a SAMO VarioCHOP cultivator. The row bandwidth adjustment reduces my manual chopping costs by up to 50% and effectively saves me a lot of money.
