The new SAMO universal cultivator
Four jobs, one implement: seedbed preparation, stubble cultivation, cover crop incorporation and mechanical weed control – with tool-free depth adjustment, individual share configuration and hydraulic pull-in cylinders.
Perfect for

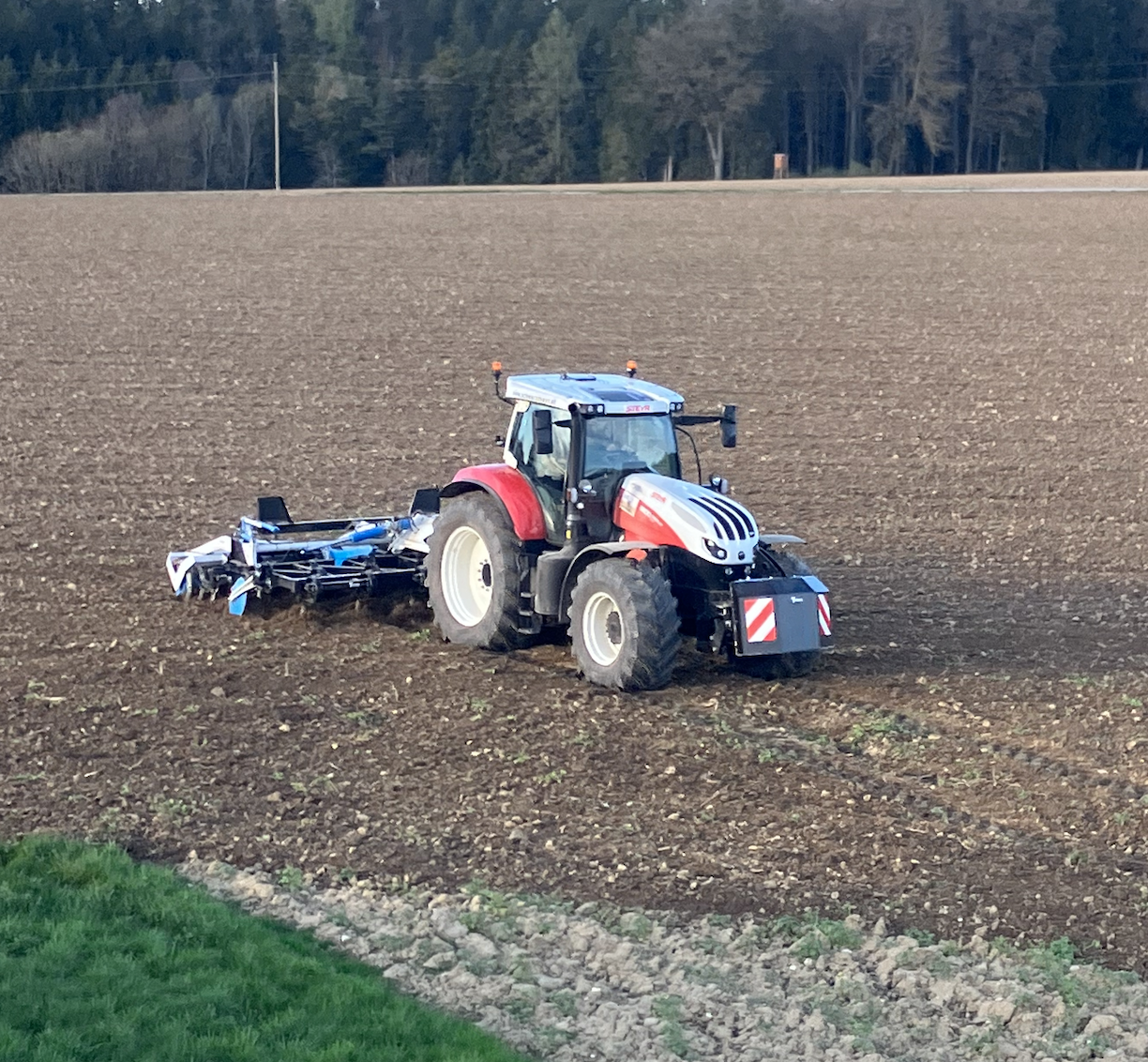

A finely crumbled, re-consolidated seedbed for optimum field emergence.

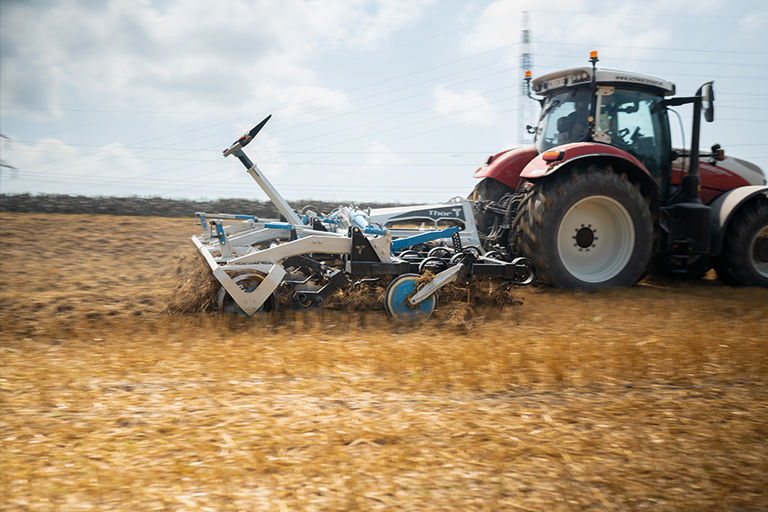

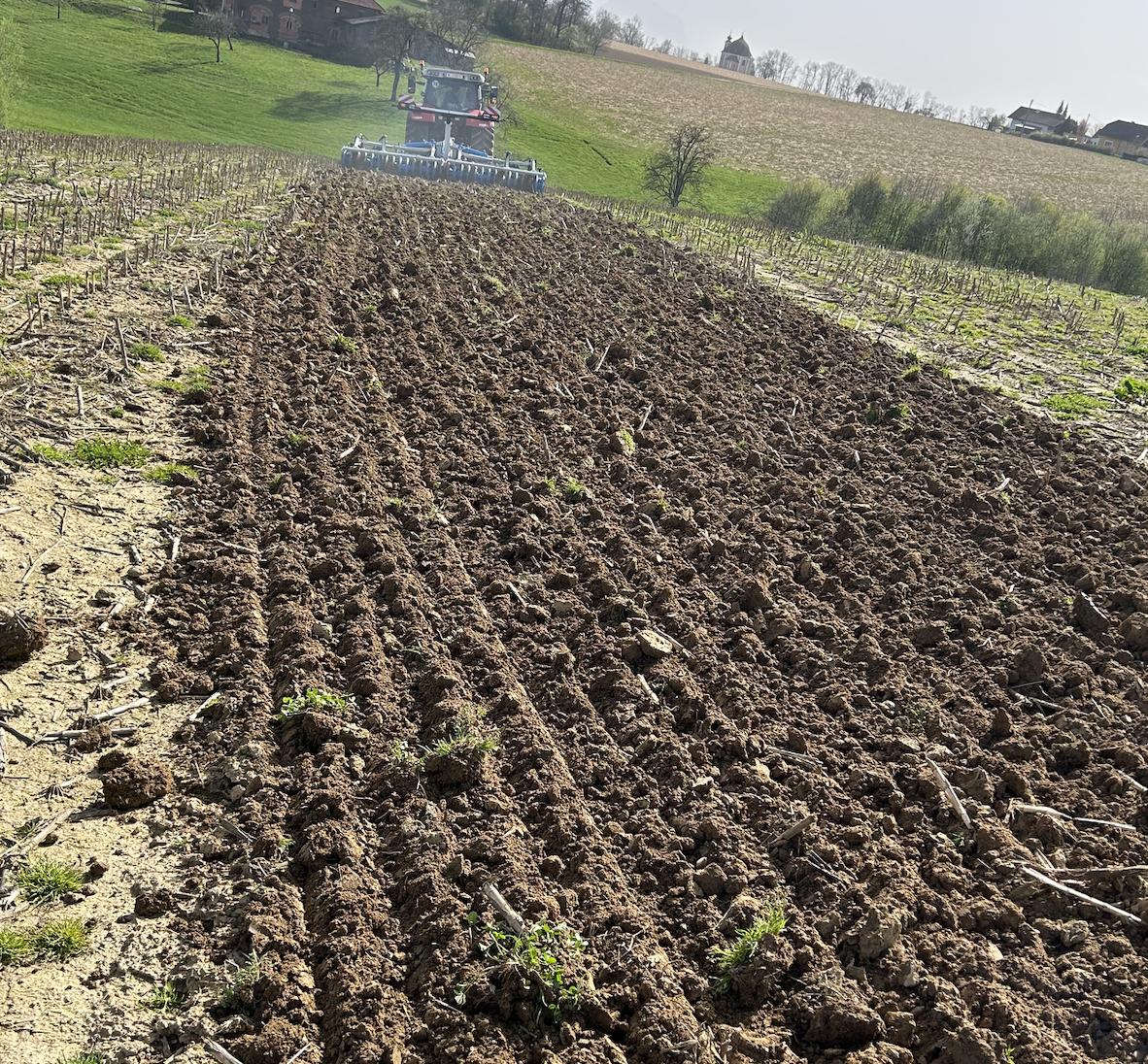

Shallow to deep stubble cultivation right after harvest – in a single pass.
Incorporate cover crops cleanly and prepare the soil for the next crop.
Mechanical weed control across the entire area – with no chemicals at all.
At a glance
Technical data

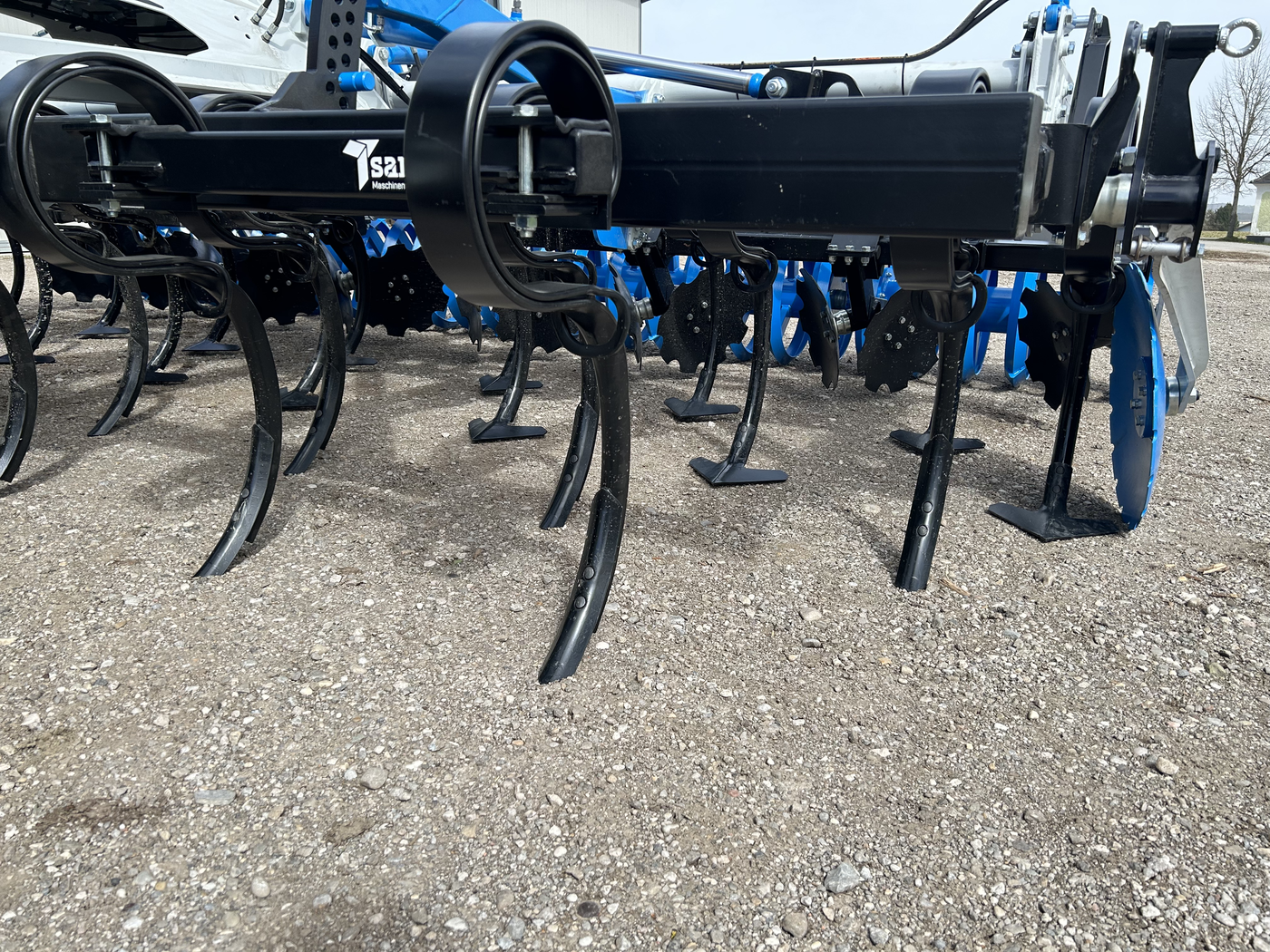

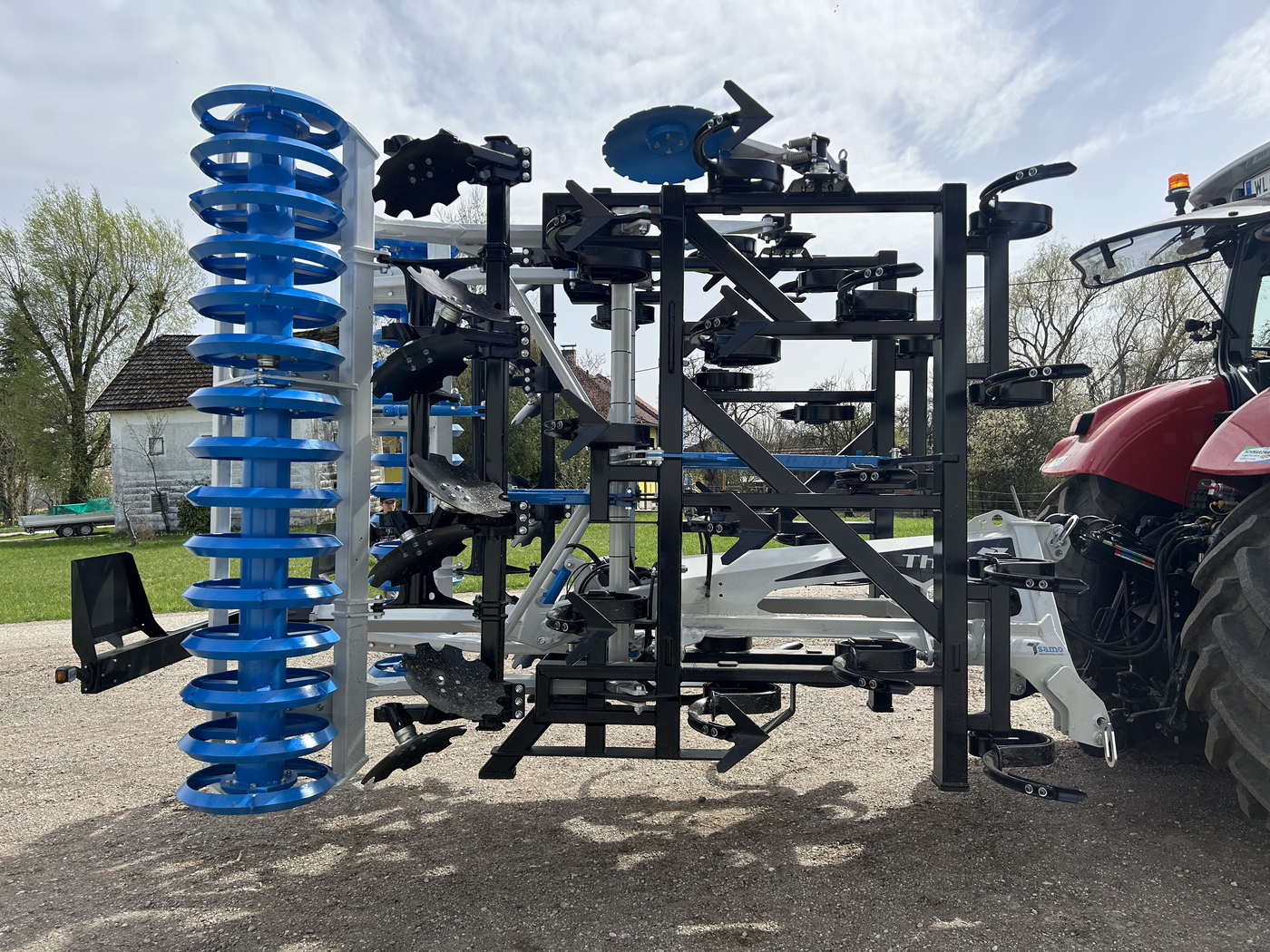

| Tines | 29 Herkules tines with reinforcement spring, each mounted on its own profile tube |
| Bars | 4 bars, special tine arrangement for maximum clearance |
| Tine spacing | 18 cm |
| Working depth | 2 to 23 cm, tool-free adjustment |
| Working widths | 3 to 7.5 m |
| Mounting | 3-point linkage (Cat. 2 and Cat. 3) up to 7.5 m working width |

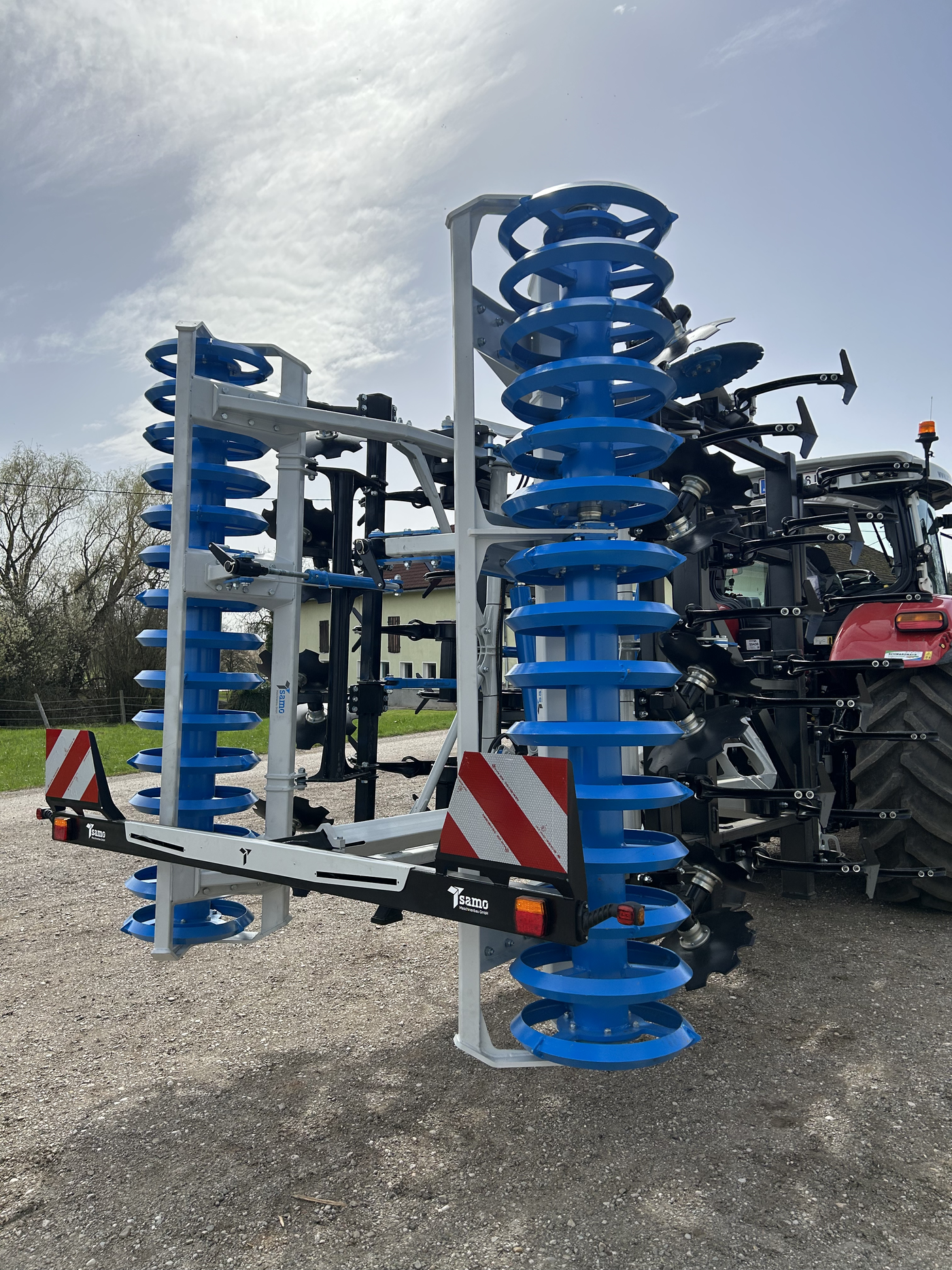

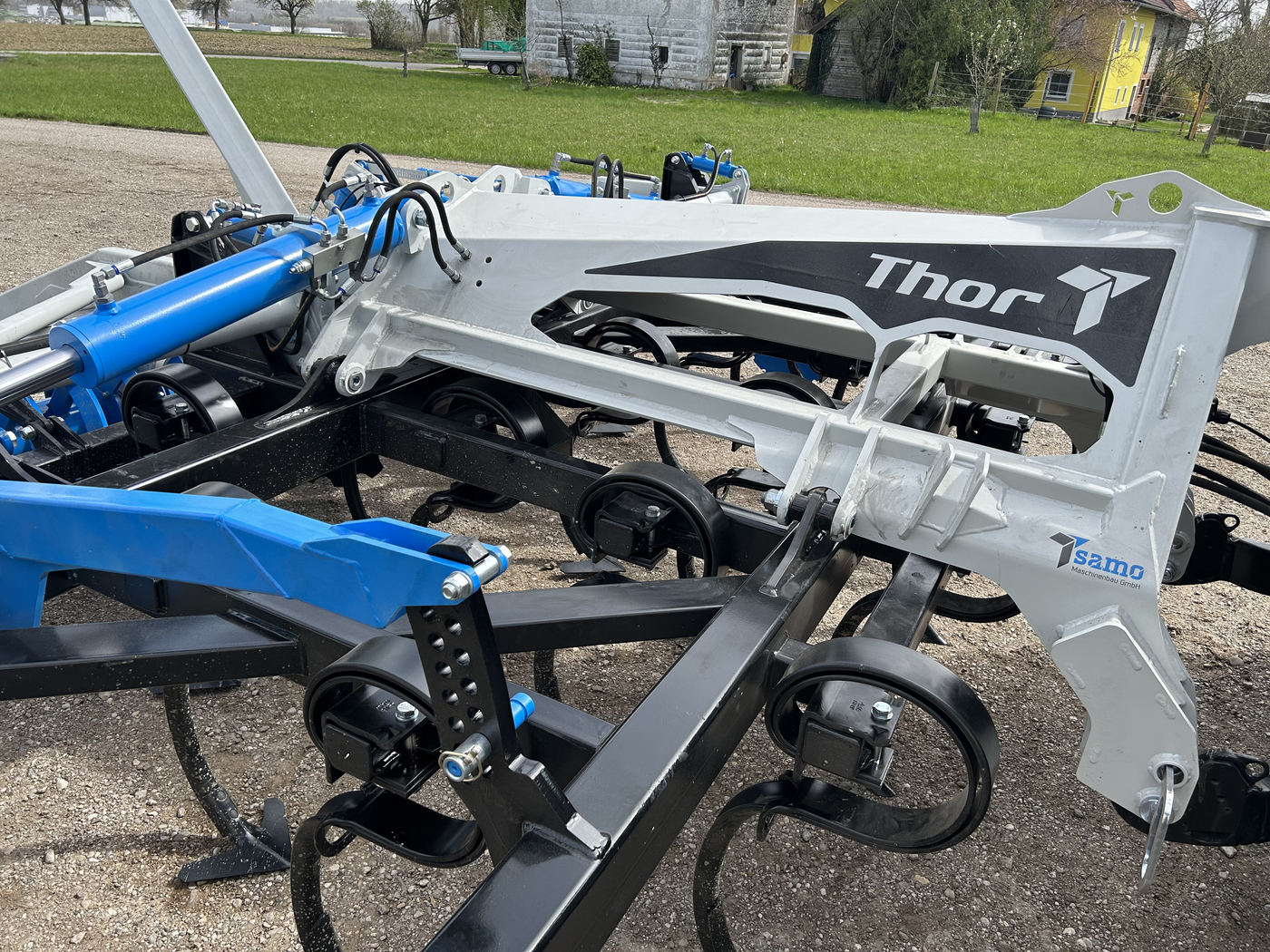

| Roller | Wedge-ring roller, 70 mm wide wedge rings for good re-consolidation and crumbling – maintenance-free bearings, other roller versions available |
| Levelling discs | With maintenance-free bearings, simple tool-free height adjustment |

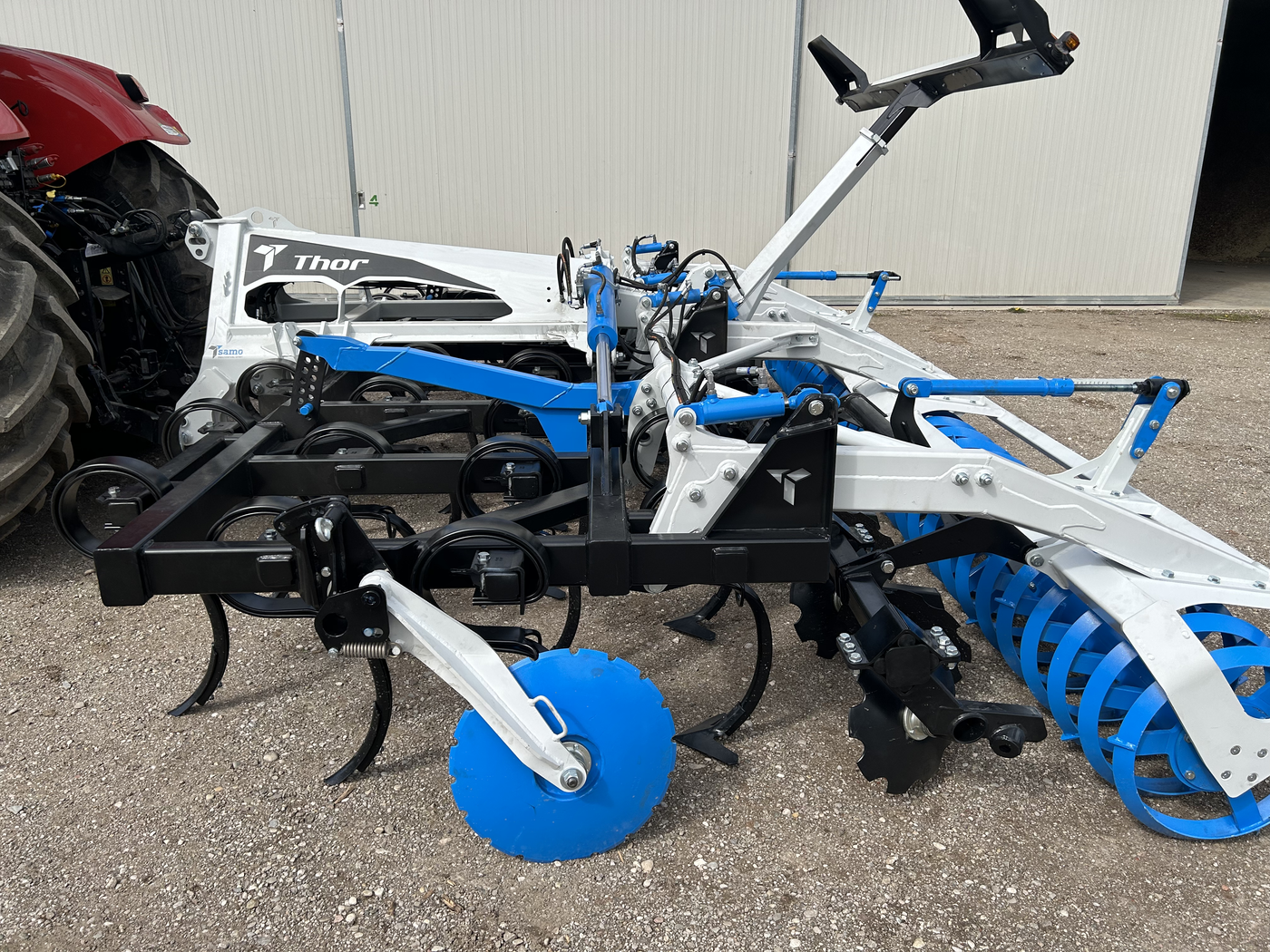

| Folding | From 6 m working width, 2 folding cylinders per wing, low transport height |
| Lighting | Hydraulically folding lighting carrier – folds upwards in work mode and cannot be damaged by stones |
The solution in detail
Insights
No obligation & free of charge
Four jobs, one implement: seedbed preparation, stubble cultivation, cover crop incorporation and mechanical weed control – with tool-free depth adjustment.
Or see it live: View demonstration dates
